HDR Color Grading Component
The HDR Color Grading component is a post-process effect that enables users to color grade scenes to match a desired look and feel. This component uses a shader behind the scenes to perform the color grading logic on each frame’s pixel.
To reduce compute time:

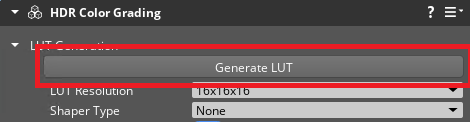

Generate a look-up texture (LUT) from the current color grading settings by clicking the Generate LUT button on the component.
Then, activate the generated LUT by clicking the Activate LUT button.
Upon activation, a Look Modification component is added to the current entity and subsequently the HDR Color Grading component is disabled.
Provider
Dependencies
Properties
Color Adjustment
| Property | Description | Values | Default |
|---|---|---|---|
| Weight | Strength of the color adjustment properties. | Float: 0.0 - 1.0 | 1.0 |
| Exposure | Controls the amount of light entering the camera. | Float: -Infinity to Infinity | 0.0 |
| Contrast | Controls the clarity of detail. | Float: -100.0 - 100.0 | 0.0 |
| Pre Saturation | Controls the intensity of colors during color adjustment. | Float: -100.0 - 100.0 | 0.0 |
| Filter Swatch | Applies a color filter. | Eight bits per channel color: 0 - 255 | 255,128,128 |
| Filter Multiply | Strength of the color filter effect. | Float: 0.0 - 1.0 | 0.0 |
| Filter Intensity | Controls the intensity of the color filter swatch. | Float: -Infinity to Infinity | 1.0 |
White Balance
| Property | Description | Values | Default |
|---|---|---|---|
| Weight | Strengh of the white balance. | Float: 0.0 - 1.0 | 0.0 |
| Temperature | Controls the warmness or coolness of the white balance. | Float: 1000.0 - 40000.0 | 6600.0 |
| Tint | Shifts the white balance from magenta to green. | Float: -100.0 - 100.0 | 0.0 |
| Luminance Preservation | Preserves the apparent brightness when manipulating the white balance. | Float: 0.0 - 1.0 | 1.0 |
Split Toning
| Property | Description | Values | Default |
|---|---|---|---|
| Weight | Strength of the split toning properties. | Float: 0.0 - 1.0 | 0.0 |
| Balance | Controls how shadow and highlight colors are mixed. | Float: -1.0 - 1.0 | 0.0 |
| Shadows Color | Controls the color of areas classified as shadows. | Eight bits per channel color: 0 - 255 | 255,128,128 |
| Highlights Color | Controls the color of areas classified as highlights. | Eight bits per channel color: 0 - 255 | 26,255,26 |
Shadows Midtones Highlights
| Property | Description | Values | Default |
|---|---|---|---|
| Weight | Strength of the Shadow Midtones Highlights properties. | Float: 0.0 - 1.0 | 0.0 |
| Shadows Start | Controls the start of pixel brightness values that constitute as shadows. | Float: 0.0 - 16.0 | 0.0 |
| Shadows End | Controls the end of pixel brightness values that constitute as shadows. | Float: 0.0 - 16.0 | 0.3 |
| Highlights Start | Controls the start of pixel brightness values that constitute as highlights. | Float: 0.0 - 16.0 | 0.55 |
| Highlights End | Controls the end of pixel brightness values that constitute as highlights. | Float: 0.0 - 16.0 | 1.0 |
| Shadows Color | Color to apply to shadows. | Eight bits per channel color: 0 - 255 | 255,64,64 |
| Midtones Color | Color to apply to midtones, which are the pixel brightness values in between shadows and highlights. | Eight bits per channel color: 0 - 255 | 26,26,255 |
| Highlights Color | Color to apply to highlights. | Eight bits per channel color: 0 - 255 | 255,0,255 |
Channel Mixing
| Property | Description | Values | Default |
|---|---|---|---|
| Channel Mixing Red | Transforms the red color channel into a different color. | Vector3: 0.0 to infinity | X:1,Y:0,Z:0 |
| Channel Mixing Green | Transforms the green color channel into a different color. | Vector3: 0.0 to infinity | X:0,Y:1,Z:0 |
| CHannel Mixing Blue | Transforms the blue color channel into a different color. | Vector3: 0.0 to infinity | X:0,Y:0,Z:1 |
Final Adjustment
| Property | Description | Values | Default |
|---|---|---|---|
| Weight | Strength of the Final Adjustment properties. | Float: 0.0 - 1.0 | 1.0 |
| Post Saturation | Controls the intensity of colors applied at the end of the color grading process. | Float: -100.0 - 100.0 | 0.0 |
| Hue Shift | Transforms colors into a different hue. | Float: 0.0 - 1.0 | 0.0 |
LUT Generation
| Property | Description | Values | Default |
|---|---|---|---|
| LUT Resolution | Sets the resolution of the generated LUT. The higher the resolution, the more accurate the results are to the original color graded settings. | 16x16x16, 32x32x32, or 64x64x64 | 16x16x16 |
| Shaper Type | Applies a shaper function during LUT generation to match a monitor’s brightness. | Linear Custom Range, Log2 48 Nits, Log2 1000 Nits, Log2 2000 Nits, log2 4000 Nits, Log2 Custom Range, PQ (SMPTE ST 2084) | None |
